Power amplifier (Only AS and CS 30.3)
|
| Gain factor |
30 |
| Distortion factor |
< 0.005% |
| Signal-to-noise ratio |
> 95dB |
| Input sensitivity |
275 mV |
| Frequency response (-3dB) |
< 5Hz to > 80kHz |
| Output power (1% THD, 4 Ohm, 2 Channel) |
2 x 125W |
|
Preamplifier (Pre-Out)
|
| Input impedance |
3.4 kΩ |
| Output impedance |
470 Ω |
| Gain factor |
1 |
| Distortion factor |
< 0.001% |
| Signal-to-noise ratio |
> 100dB |
| Frequency response (-3dB) |
< 5Hz to > 80kHz |
| Crosstalk attenuation (channels) |
> 95dB |
| Crosstalk attenuation (inputs) |
> 85dB |
| Input headroom (1% THD) |
3.5 V |
| Output headroom (1% THD) |
3V |
|
Preamplifier (Line-Out)
|
| Output impedance |
47 Ω |
| Gain factor |
1 |
| Distortion factor |
< 0.001% |
| Signal-to-noise ratio |
> 100dB |
| Output headroom (1% THD) |
3.5 V |
|
Preamplifier (Headphone-Out)
|
| Output impedance |
80 Ω |
| Gain factor |
4 |
| Distortion factor |
< 0.001% |
| Signal-to-noise ratio |
> 100dB |
| Output headroom (1% THD) |
4.5 V |
|
Preamplifier (Phono)
|
| RIAA equalization |
< 0.2dB |
| Gain MM |
40dB |
| Signal-to-noise ratio MM |
> 83dB(A) |
| Gain MC |
60dB |
| Signal-to-noise ratio MC |
> 74dB(A) |
| Input headroom MM (1% THD) |
30 mV |
| Input headroom MC (1% THD) |
3 mV |
|
CD-Player (only CS 30.3)
|
| Playable formats |
CD Audio; CDR (according to Red-Book standard) |
| Frequency response CD |
< 20 – 20 kHz |
|
Network
|
| LAN connection (hot-plugging capable) |
100Mbit/s |
| Supported WLAN/WiFi standards |
2.4 / 5 GHz 802.11a/b/g/n/ac |
| Number of antennas |
2 |
| WPS |
yes |
|
Streaming
|
| Max. sampling rates |
DSD256, 32Bit/384kHz PCM |
| Streaming services |
AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, HighResAudio |
| Supported file formats |
WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF |
|
Bluetooth
|
| Bluetooth standard |
5.0 LE |
| Supported Bluetooth profiles |
AVRCP 1.5 AD2P |
|
USB Input (Rear)
|
| USB standard |
USB 2.0 |
| Max. current |
500 mA |
| Supported formats |
FAT16, FAT 32, NTFS |
| WARNING: |
The USB input is exclusively for hard drives and USB sticks! |
|
Digital inputs (S/P-DIF/Coaxial)
|
| Max. sampling/bit rate (OPTO) |
96 kHz / 24 Bit |
| Deemphasis (OPTO) |
Yes, automatic |
| Max. sampling/bit rate (COAX) |
192 kHz / 24 Bit |
| Min. signal level [Vpp] at 195kHz (COAX) |
> 150 mVpp |
| Input impedance (COAX) |
75 Ω |
| Deemphasis (OPTO) |
Yes, automatic |
| Max. sampling/bit rate (ARC) |
192 kHz / 24 Bit |
| Input impedance |
100 Ω |
| NOTE: |
When using digital inputs |
|
Digital outputs (S/P-DIF/Coaxial)
|
| Max. sampling/bit rate (OPTO) |
96 kHz / 24 Bit |
| Max. sampling/bit rate (COAX) |
192 kHz / 24 Bit |
| Output impedance (COAX) |
75 Ω |
| NOTE: |
When using digital outputs |
|
Power consumption (AS/CS 30.3)
|
| Standby |
< 0.5 Watt |
| Extended standby (network connection) |
< 2 Watt |
| Idle |
< 16 Watt |
| Fuse used |
T 3.15A H |
|

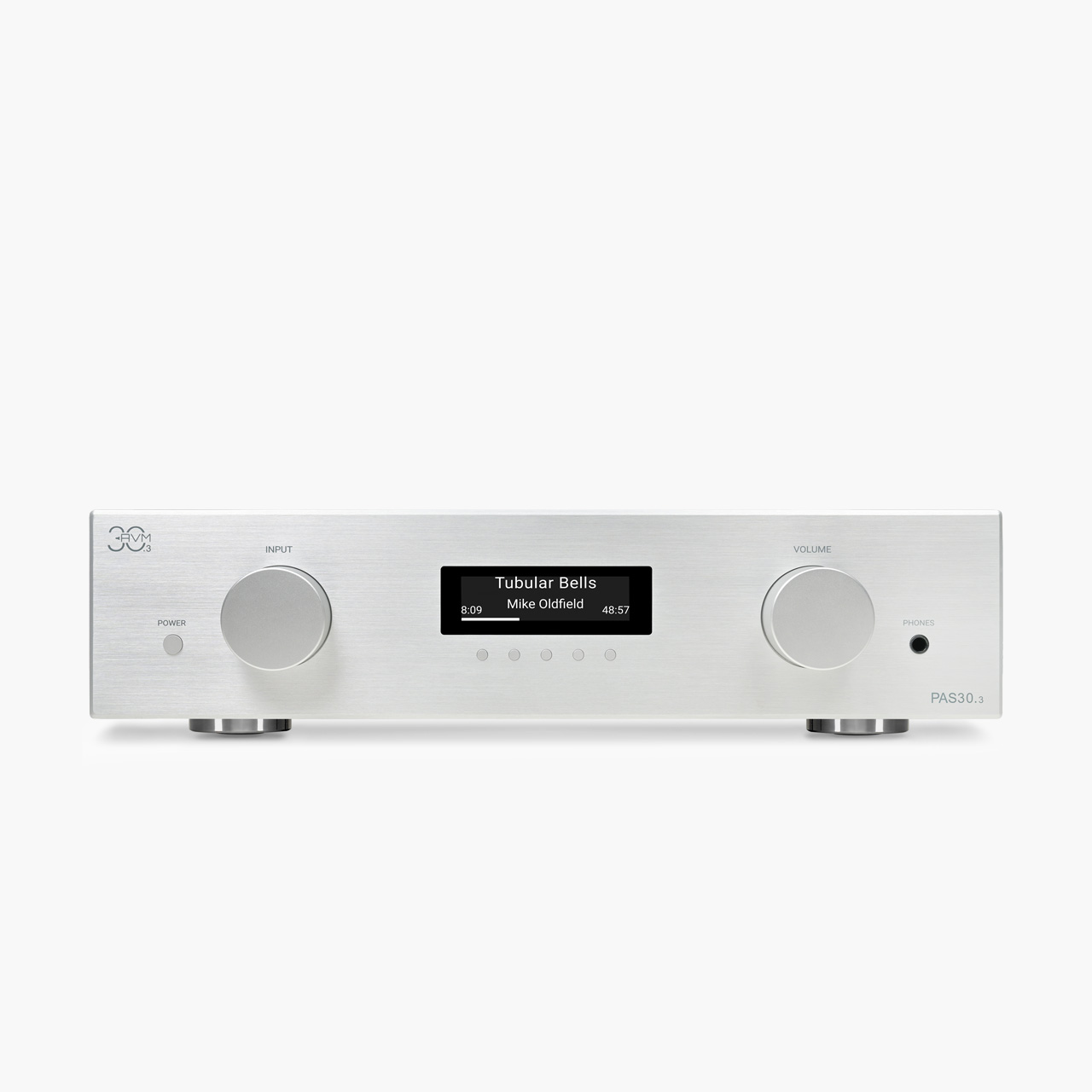

Power consumption (PAS 30.3)
|
| Standby |
< 0.5 Watt |
| Extended standby (network connection) |
< 2 Watt |
| Idle |
< 16 Watt |
| Fuse used |
T 3.15A H |
|
General
|
| Weight (AS/CS 30.3) |
6.9 kg |
| Weight (PAS 30.3) |
6.7 kg |
| Dimensions (WxHxD) (AS/CS 30.3) |
430 x 115 x 360 |
| Dimensions (WxHxD) (PAS 30.3) |
430 x 115 x 320 |
| Warranty |
2 years (+2 years with online registration*) |
| |
*Warranty periods may vary in different distribution countries. |
|
We reserve the right to make changes to technical specifications and features.
|
