Audiophile sound enjoyment

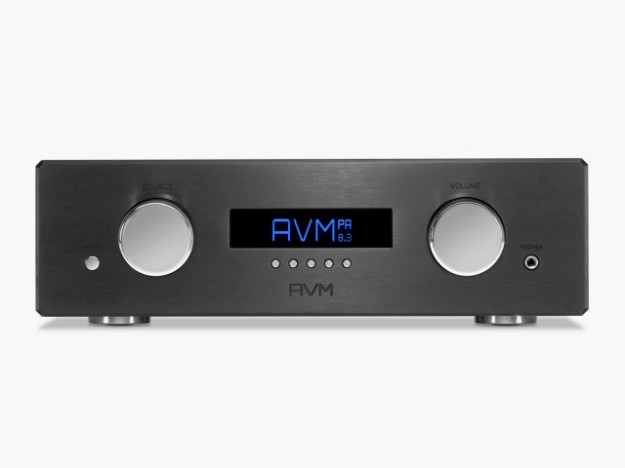

The Ovation PA 8.3 by AVM Audio is the epitome of audiophile perfection. This masterpiece offers an outstanding combination of cutting-edge technology and timeless design to elevate your listening experience to a new level. The modular construction of the preamplifier allows for perfect customization to your individual setup, while also providing unmatched auditory transparency. The PA 8.3 was specifically designed for music lovers who seek the best sound without compromises. Every component is designed to reproduce even the finest musical details and represents the music as naturally as possible.

High-quality components and modularity

The modularity of the Ovation PA 8.3 is unrivaled, making it the ideal preamplifier for any imaginable environment. With a variety of plug-in modules, the PA 8.3 can be perfectly tailored to individual needs. Whether it’s a Phono-MM/MC module, DAC module or additional line inputs – the configuration remains completely flexible. This versatility allows for seamless integration with both classic analog sources and state-of-the-art digital signals. The result: An authentic, undistorted sound that meets the highest standards. Thanks to its expandability, the PA 8.3 is a future-proof investment that can adapt to changing requirements.

For its outstanding audiophile performance, the PA 8.3 uses only the highest quality components. From the carefully designed power supply to selected components, everything has been designed to transmit even the finest sound details without loss. At the heart of it all is the highly precise electronic volume control, which allows for absolutely lossless adjustment of the volume. The generous OLED display offers an intuitive overview of all settings and makes operation a real pleasure. Perfect technology and flawless workmanship unite in the Ovation PA 8.3 to set new standards for listening experience.

Technical Data

Base unit
Input sensitivity (output voltage 1V)	20 mV –450 mV (adjustable)
Input impedance high level RCA	3.4 kΩ
Input impedance high level XLR	13.6 kΩ
Output impedance RCA	47 Ω
Output impedance XLR	94 Ω
Output voltage RCA	6V max.
Output voltage XLR	6V max.
Signal-to-noise ratio semiconductor/tube output	>100 dB / >90 dB
Distortion factor semiconductor/tube output	<0.001 % / < 0.01 %
Frequency response semiconductor/tube output	<20Hz – >100 kHz / <20 Hz – >30 kHz
Digital input card
Samplerate upsampling/downsampling	Switchable up to max. 384 kHz / 32 Bit
Deemphasis	yes, automatic
Input format Dig in opt/coax S/P-DIF	33 kHz – 96 / 192 kHz / 16 – 24 Bit
USB-B input
Asynchronous PCM (without driver)	up to 96 kHz / 24 Bit
PCM (with driver)	up to 384 kHz / 32 Bit
DSD (with driver)	DSD64 (2.8 MHz) and DSD128 (5.6 MHz)
Phono input card
Input impedance MM	47 kΩ // 47 – 420 pF (adjustable)
Gain MM	43 dB – 52 dB (adjustable)
Input impedance MC	47 pF // 47 Ω – 1 kΩ (adjustable)
Gain MC	63 dB – 72 dB (adjustable)
Signal-to-noise ratio MM	(5mV / 1kHz) 79 dB or 84 dB(A)
Signal-to-noise ratio MC	(0.5 mV / 1 kHz) 70dB or 76 dB(A)
Frequency response	< 30 Hz – > 100 kHz
Phono equalization	according to RIAA +/- 0.2 dB
Subsonic filter	20 Hz, 3rd order
FM tuner input card
Reception frequency range	87.5 – 108.0 MHz
Tuning step size	50 kHz
Antenna input impedance	50 Ω
Sensitivity mono / stereo	1.5 μV / 50 μV
Signal-to-noise ratio mono / stereo	73 dB(A) / 68 dB(A)
Distortion factor mono / stereo	0.1 % / 0.3 %
Frequency response	30 Hz – 16 kHz
Channel separation	55 dB
General
Supply voltage	115 V/60 Hz, / 230 V/50 Hz
Power consumption max.	70 W
Standby	<0.5 W
Dimensions (W x H x D)	430 x 130 x 390 mm
Weight	12 kg
Warranty	4 years (with appropriate registration*)
	*Warranty periods may vary in different distribution countries.
We reserve the right to make changes to technical specifications and features.
